Syncplify.me Server v8

Appearance

HTTPS / WebClient! ​

This page configures the HTTPS service together with the appearance, limits, and security of the WebClient!, the browser based interface your users log into. All settings live on a single virtual site configuration and are persisted with one Save in the page header.

The configuration is organized into seven tabs, in this order: Appearance, Operational, TLS, Security, Sessions, CORS, and Advanced. Several tabs note that their settings are read when the virtual site starts, so a restart is needed for those changes to take effect.

Appearance ​

The Appearance tab covers everything visual: branding shown on the WebClient login and upload pages, colors, logos, wallpapers, the page title, and the disclaimers.

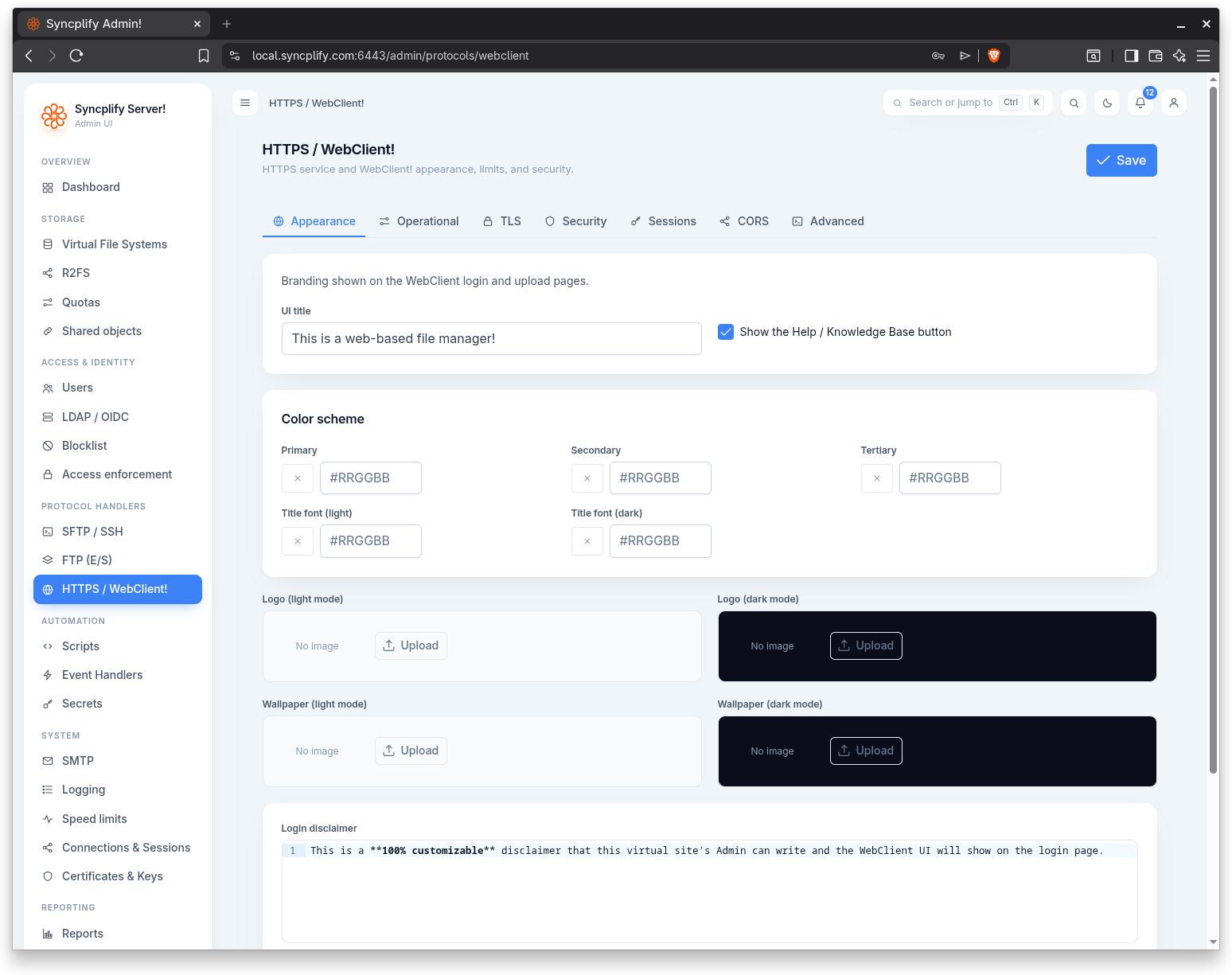

Appearance tab

UI title and Help button ​

  • UI title: the title text shown in the WebClient interface.
  • Show the Help / Knowledge Base button: a toggle that controls whether the Help and Knowledge Base button is visible to users.

Color scheme ​

The Color scheme section provides color pickers for the main brand colors and the title fonts.

  • Primary, Secondary, and Tertiary: the three brand colors used across the interface.
  • Title font (light) and Title font (dark): the title font colors for light mode and dark mode respectively.

Logos and wallpapers ​

Each image is uploaded through an image field, with separate variants for light and dark mode.

  • Logo (light mode) and Logo (dark mode).
  • Wallpaper (light mode) and Wallpaper (dark mode).

Disclaimers ​

Two disclaimer fields let you present text to users; both support Markdown and are edited in a code editor.

  • Login disclaimer: shown on the login page.
  • Upload disclaimer: shown on the upload page.

Operational ​

The Operational tab holds transfer limits and behavior, plus the shared object password rules.

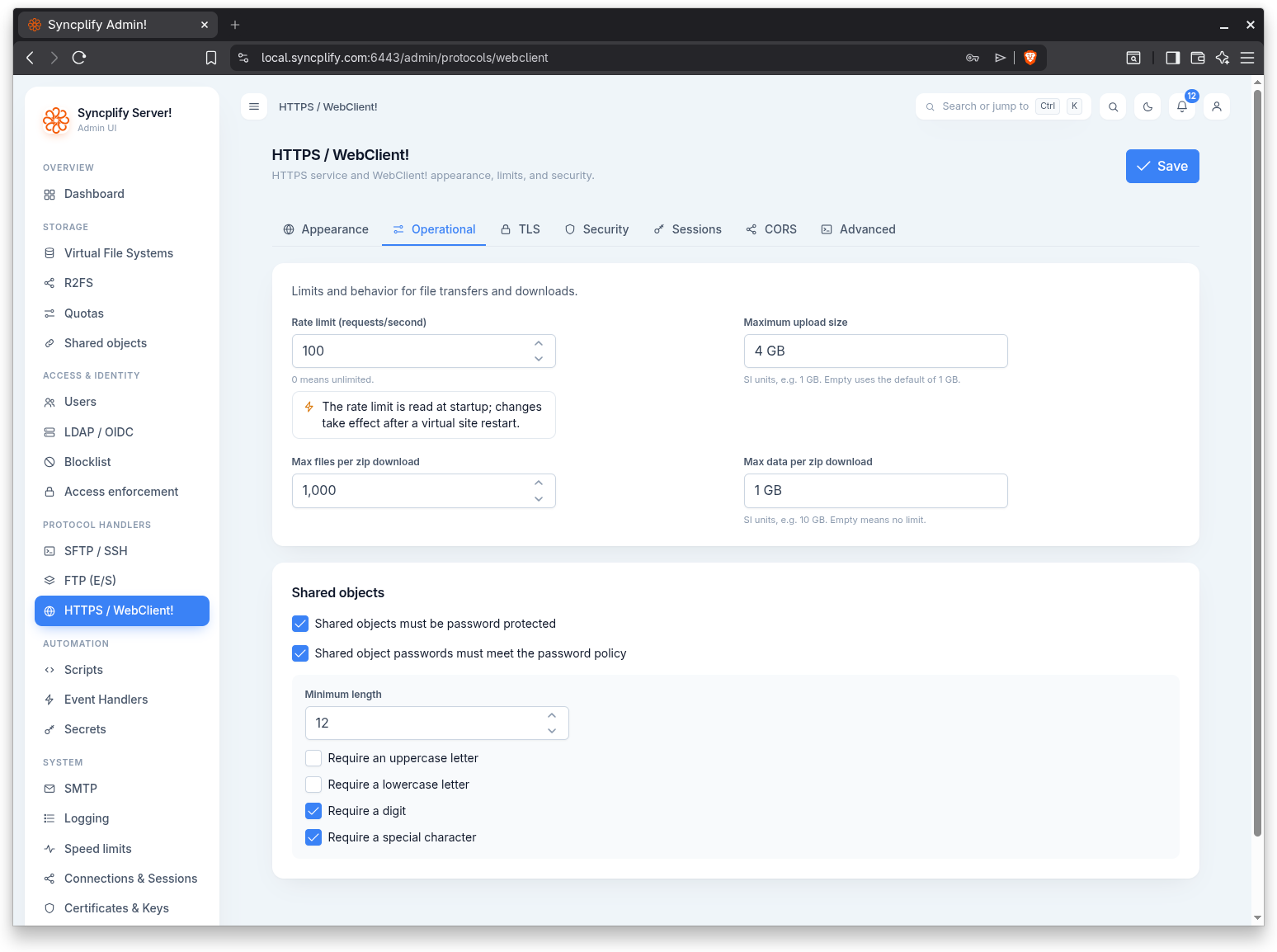

Operational tab

Limits ​

  • Rate limit (requests/second): caps the request rate; 0 means unlimited. The rate limit is read at startup, so a change takes effect after a virtual site restart, and the field shows a restart notice.
  • Maximum upload size: the largest upload the WebClient will accept, expressed in SI units (for example 1 GB). Empty uses the default of 1 GB.
  • Max files per zip download: the maximum number of files a single zip download may contain.
  • Max data per zip download: the maximum total size of a zip download, in SI units (for example 10 GB). Empty means no limit.

Shared objects ​

This section governs the passwords on shared objects (the links your users create to share files and folders).

  • Shared objects must be password protected: requires every shared object to carry a password.
  • Shared object passwords must meet the password policy: enforces a password policy on shared object passwords. When enabled, an inline policy panel appears with the rules:
    • Minimum length.
    • Require an uppercase letter.
    • Require a lowercase letter.
    • Require a digit.
    • Require a special character.

TLS ​

The TLS tab controls how the HTTPS service secures connections. Its settings are read at startup, so the tab shows a restart notice.

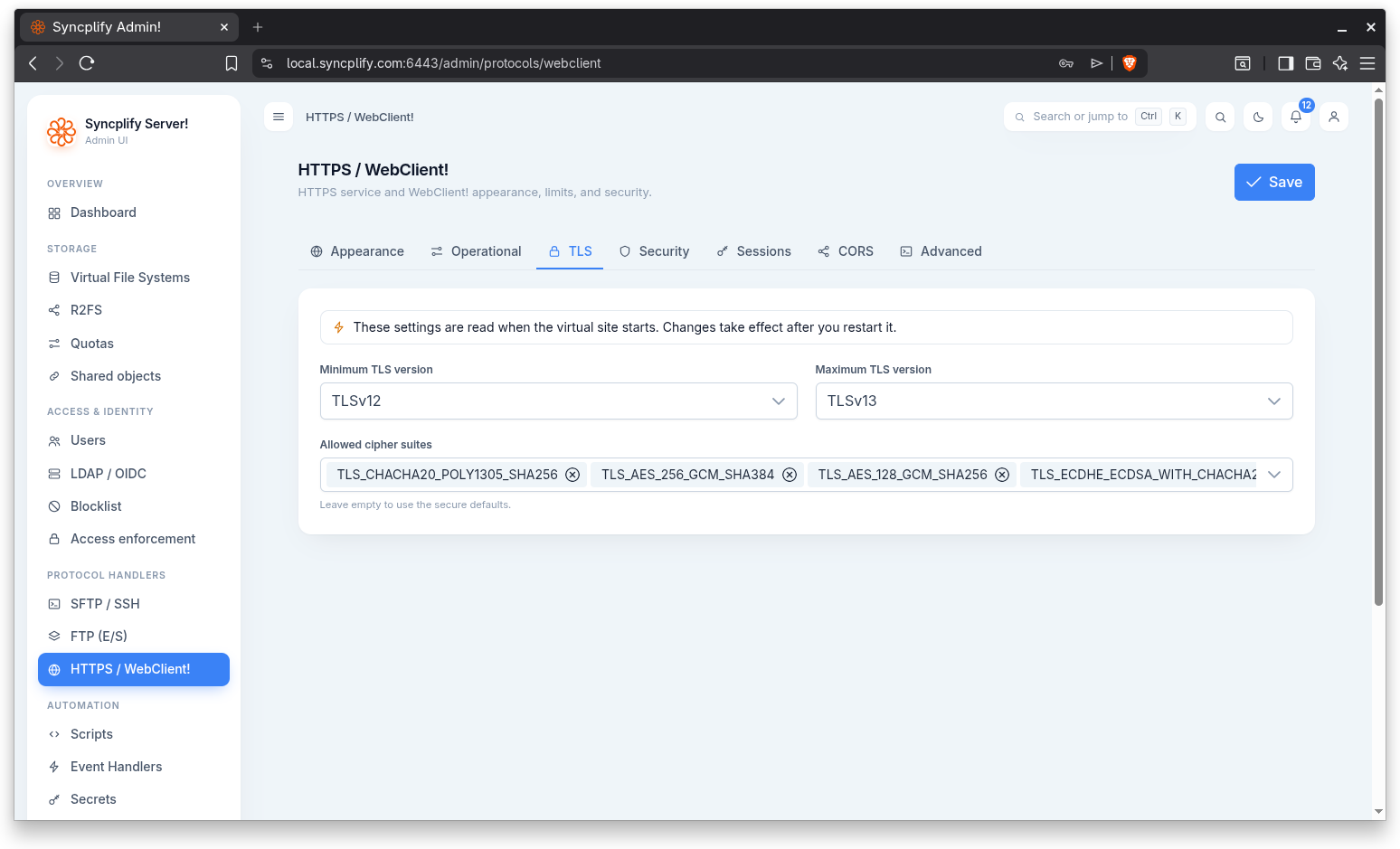

TLS tab

  • Minimum TLS version: the lowest TLS version the service will accept.
  • Maximum TLS version: the highest TLS version the service will negotiate.
  • Allowed cipher suites: the cipher suites the service may use, chosen from a filterable list and shown as chips. Leave this empty to use the secure defaults.

Security ​

The Security tab provides HTTP response hardening through the security middleware. Most deployments behind a reverse proxy that already sets these headers can leave the middleware off.

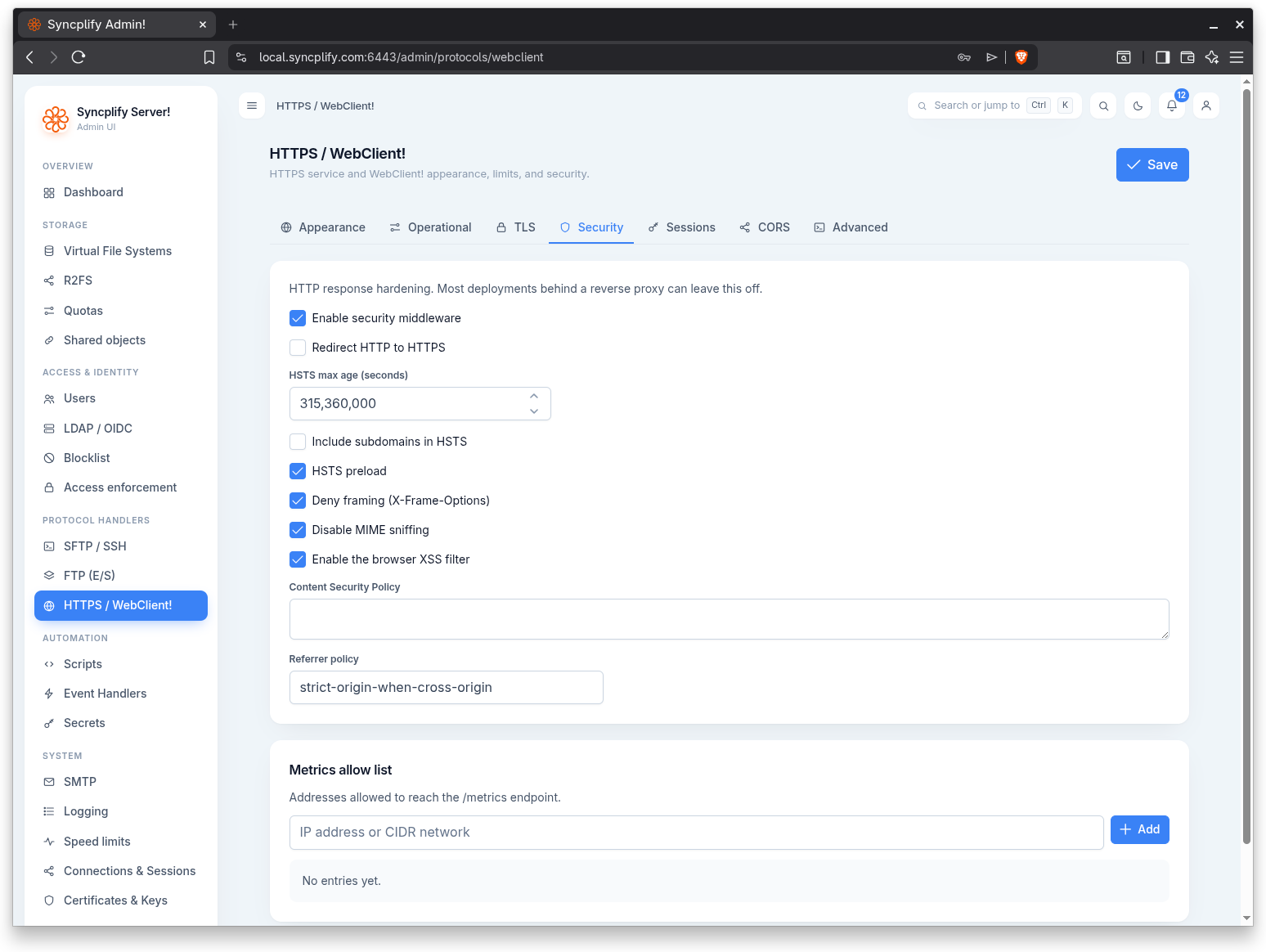

Security tab

Security middleware ​

The Enable security middleware toggle reveals the hardening options:

  • Redirect HTTP to HTTPS: sends plain HTTP requests to the HTTPS endpoint.
  • HSTS max age (seconds): the lifetime of the HTTP Strict Transport Security policy.
  • Include subdomains in HSTS: extends the HSTS policy to subdomains.
  • HSTS preload: marks the site for inclusion in browser HSTS preload lists.
  • Deny framing (X-Frame-Options): prevents the WebClient from being embedded in a frame.
  • Disable MIME sniffing: instructs browsers not to guess content types.
  • Enable the browser XSS filter: turns on the browser's built in cross site scripting filter.
  • Content Security Policy: the CSP header value, edited in a multi line field.
  • Referrer policy: the Referrer-Policy header value (for example strict-origin-when-cross-origin).

Metrics allow list ​

A separate section, "Metrics allow list", lists the addresses allowed to reach the /metrics endpoint. Entries are given as IP addresses or CIDR ranges.

Sessions ​

The Sessions tab governs the JSON Web Tokens that authenticate WebClient and shared object sessions. Its settings are read at startup, so the tab shows a restart notice.

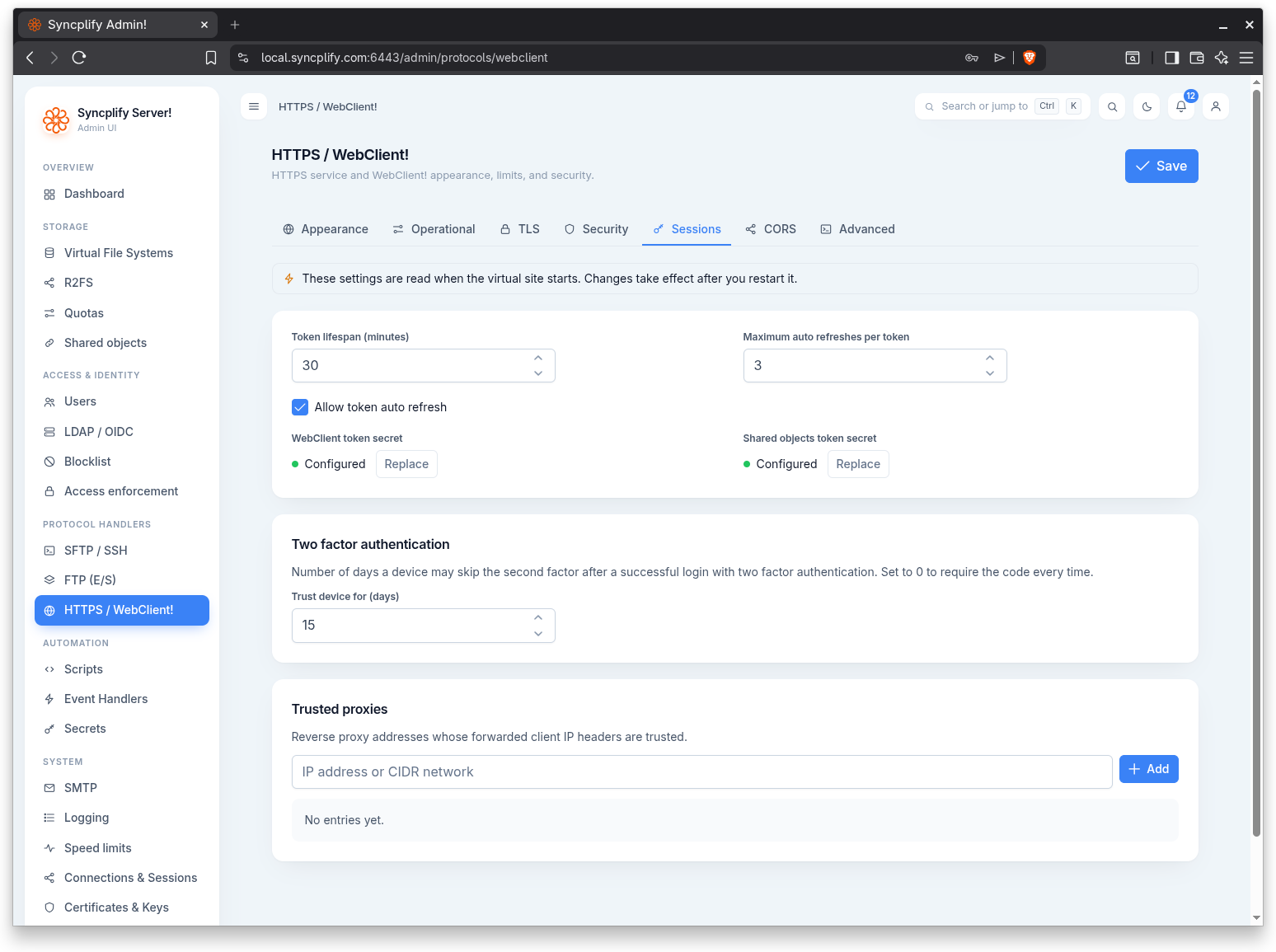

Sessions tab

  • Token lifespan (minutes): how long an issued token remains valid.
  • Maximum auto refreshes per token: the cap on how many times a token may be automatically refreshed.
  • Allow token auto refresh: enables automatic refresh of tokens before they expire.
  • WebClient token secret: the signing secret for WebClient session tokens. This is a secret field; it is only sent to the server when you actually replace it, so leaving it untouched keeps the stored value.
  • Shared objects token secret: the signing secret for shared object tokens, with the same replace only behavior.

Trusted proxies ​

A separate section, "Trusted proxies", lists the reverse proxy addresses whose forwarded client IP headers are trusted. Entries are IP addresses or CIDR ranges. Set these when the WebClient runs behind a proxy so the real client IP is honored.

CORS ​

The CORS tab configures cross origin resource sharing for the WebClient API.

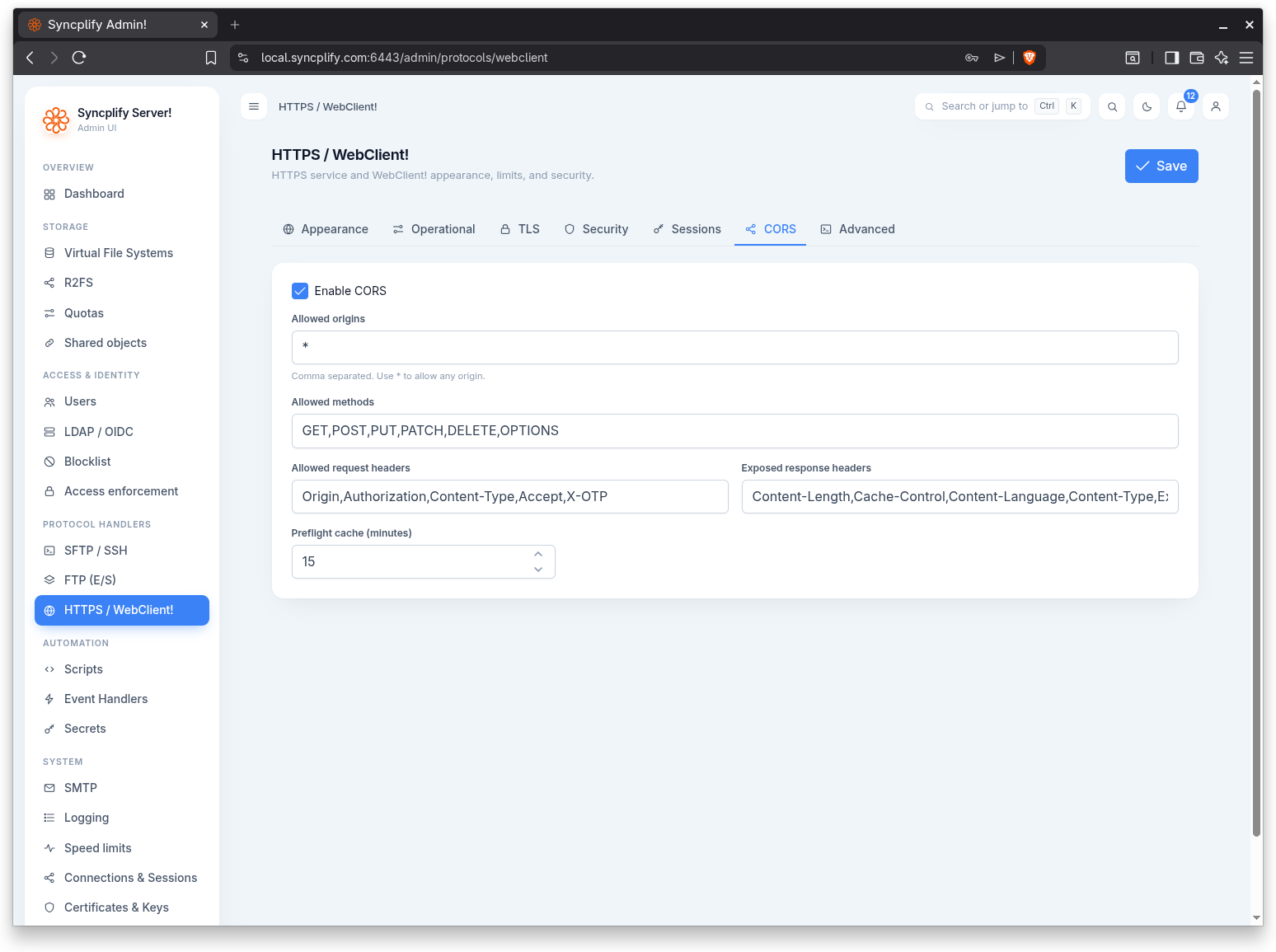

CORS tab

The Enable CORS toggle reveals the options:

  • Allowed origins: a comma separated list of origins; use * to allow any origin.
  • Allowed methods: the HTTP methods permitted (for example GET, POST, PATCH, DELETE, OPTIONS).
  • Allowed request headers: the request headers clients may send.
  • Exposed response headers: the response headers exposed to clients.
  • Preflight cache (minutes): how long browsers may cache the result of a preflight request.

Advanced ​

The Advanced tab covers custom response headers and custom email templates.

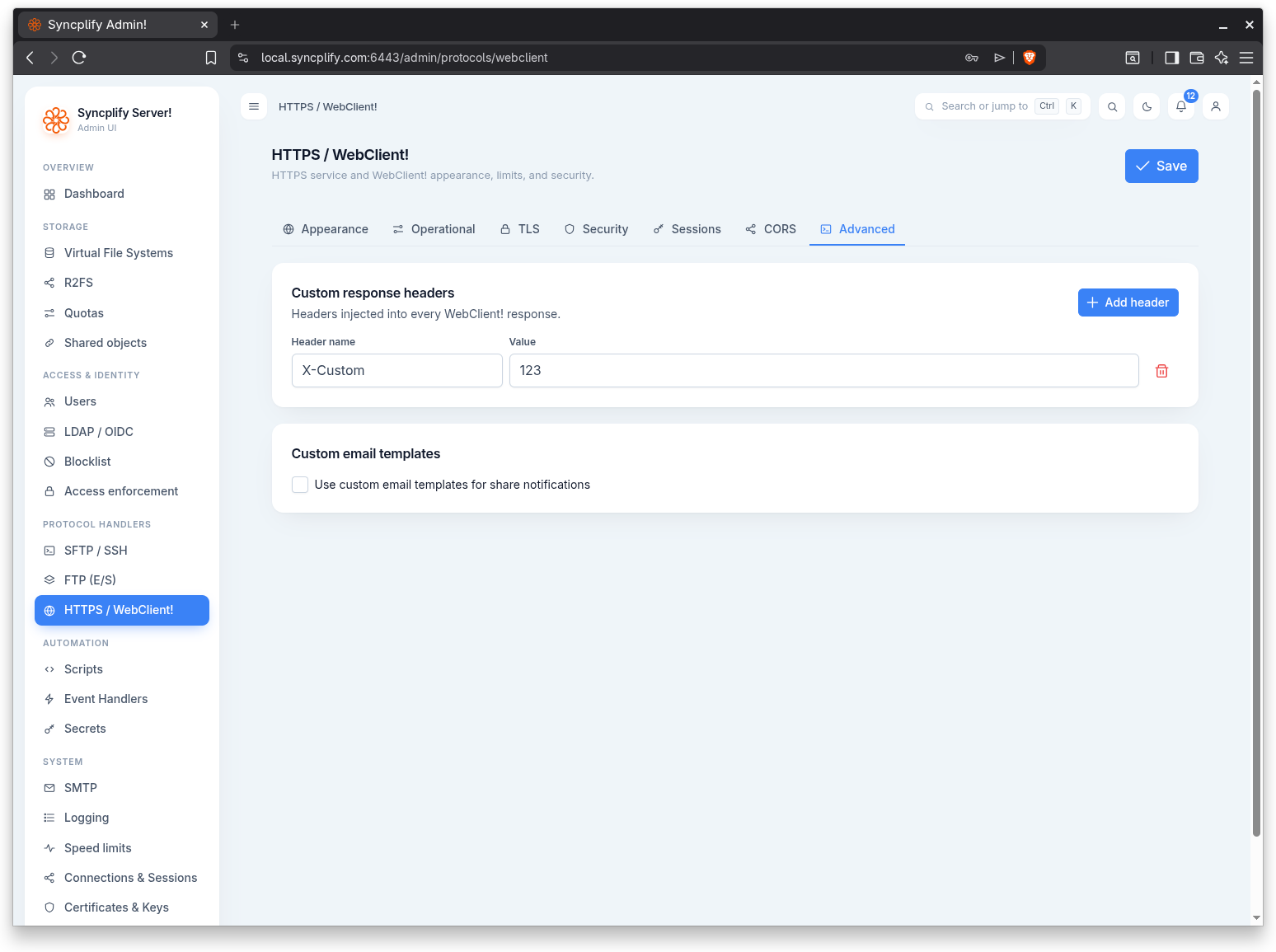

Advanced tab

Custom response headers ​

Headers injected into every WebClient! response. Use Add header to append a row, then fill in the Header name and Value. Each row has a delete button to remove it. When there are no rows, the panel shows a placeholder noting that no custom headers are defined.

Custom email templates ​

The Use custom email templates for share notifications toggle reveals two editors for the messages sent when a user shares an object:

  • HTML template: edited in a code editor with HTML syntax support.
  • Plain text template: edited in a multi line field.
